CScatterSVM Class Reference

Detailed Description

ScatterSVM - Multiclass SVM.

The ScatterSVM is an unpublished experimental true multiclass SVM. Details are availabe in the following technical report.

This code is currently experimental.

Robert Jenssen and Marius Kloft and Alexander Zien and S"oren Sonnenburg and Klaus-Robert M"{u}ller, A Multi-Class Support Vector Machine Based on Scatter Criteria, TR 014-2009 TU Berlin, 2009

Definition at line 53 of file ScatterSVM.h.

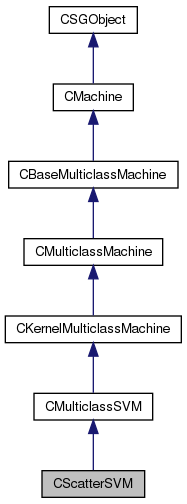

Inheritance diagram for CScatterSVM:
Inheritance graph
[legend]

Public Member Functions

 CScatterSVM ()
 CScatterSVM (SCATTER_TYPE type)
 CScatterSVM (float64_t C, CKernel *k, CLabels *lab)
virtual ~CScatterSVM ()
virtual EMachineType get_classifier_type ()
virtual float64_t apply (int32_t num)
virtual CLabelsclassify_one_vs_rest ()
virtual const char * get_name () const
 MACHINE_PROBLEM_TYPE (PT_MULTICLASS)
bool create_multiclass_svm (int32_t num_classes)
bool set_svm (int32_t num, CSVM *svm)
CSVMget_svm (int32_t num)
bool load (FILE *svm_file)
bool save (FILE *svm_file)
SGVector< float64_tget_linear_term ()
float64_t get_tube_epsilon ()
float64_t get_epsilon ()
float64_t get_nu ()
float64_t get_C ()
int32_t get_qpsize ()
bool get_shrinking_enabled ()
float64_t get_objective ()
bool get_bias_enabled ()
bool get_linadd_enabled ()
bool get_batch_computation_enabled ()
void set_defaults (int32_t num_sv=0)
void set_linear_term (SGVector< float64_t > linear_term)
void set_C (float64_t C)
void set_epsilon (float64_t eps)
void set_nu (float64_t nue)
void set_tube_epsilon (float64_t eps)
void set_qpsize (int32_t qps)
void set_shrinking_enabled (bool enable)
void set_objective (float64_t v)
void set_bias_enabled (bool enable_bias)
void set_linadd_enabled (bool enable)
void set_batch_computation_enabled (bool enable)
void set_kernel (CKernel *k)
CKernelget_kernel ()
virtual void store_model_features ()
virtual void set_labels (CLabels *lab)
bool set_machine (int32_t num, CMachine *machine)
CMachineget_machine (int32_t num) const
virtual CBinaryLabelsget_submachine_outputs (int32_t i)
virtual float64_t get_submachine_output (int32_t i, int32_t num)
virtual CMulticlassLabelsapply_multiclass (CFeatures *data=NULL)
virtual
CMulticlassMultipleOutputLabels
apply_multiclass_multiple_output (CFeatures *data=NULL, int32_t n_outputs=5)
virtual float64_t apply_one (int32_t vec_idx)
CMulticlassStrategyget_multiclass_strategy () const
CRejectionStrategyget_rejection_strategy () const
void set_rejection_strategy (CRejectionStrategy *rejection_strategy)
int32_t get_num_machines () const
virtual EProblemType get_machine_problem_type () const
virtual bool is_label_valid (CLabels *lab) const
virtual bool train (CFeatures *data=NULL)
virtual CLabelsapply (CFeatures *data=NULL)
virtual CBinaryLabelsapply_binary (CFeatures *data=NULL)
virtual CRegressionLabelsapply_regression (CFeatures *data=NULL)
virtual CStructuredLabelsapply_structured (CFeatures *data=NULL)
virtual CLatentLabelsapply_latent (CFeatures *data=NULL)
virtual CLabelsget_labels ()
void set_max_train_time (float64_t t)
float64_t get_max_train_time ()
void set_solver_type (ESolverType st)
ESolverType get_solver_type ()
virtual void set_store_model_features (bool store_model)
virtual bool train_locked (SGVector< index_t > indices)
virtual CLabelsapply_locked (SGVector< index_t > indices)
virtual CBinaryLabelsapply_locked_binary (SGVector< index_t > indices)
virtual CRegressionLabelsapply_locked_regression (SGVector< index_t > indices)
virtual CMulticlassLabelsapply_locked_multiclass (SGVector< index_t > indices)
virtual CStructuredLabelsapply_locked_structured (SGVector< index_t > indices)
virtual CLatentLabelsapply_locked_latent (SGVector< index_t > indices)
virtual void data_lock (CLabels *labs, CFeatures *features)
virtual void post_lock (CLabels *labs, CFeatures *features)
virtual void data_unlock ()
virtual bool supports_locking () const
bool is_data_locked () const
virtual CMachineclone ()
virtual CSGObjectshallow_copy () const
virtual CSGObjectdeep_copy () const
virtual bool is_generic (EPrimitiveType *generic) const
template<class T >
void set_generic ()
void unset_generic ()
virtual void print_serializable (const char *prefix="")
virtual bool save_serializable (CSerializableFile *file, const char *prefix="", int32_t param_version=VERSION_PARAMETER)
virtual bool load_serializable (CSerializableFile *file, const char *prefix="", int32_t param_version=VERSION_PARAMETER)
DynArray< TParameter * > * load_file_parameters (const SGParamInfo *param_info, int32_t file_version, CSerializableFile *file, const char *prefix="")
DynArray< TParameter * > * load_all_file_parameters (int32_t file_version, int32_t current_version, CSerializableFile *file, const char *prefix="")
void map_parameters (DynArray< TParameter * > *param_base, int32_t &base_version, DynArray< const SGParamInfo * > *target_param_infos)
void set_global_io (SGIO *io)
SGIOget_global_io ()
void set_global_parallel (Parallel *parallel)
Parallelget_global_parallel ()
void set_global_version (Version *version)
Versionget_global_version ()
SGStringList< char > get_modelsel_names ()
void print_modsel_params ()
char * get_modsel_param_descr (const char *param_name)
index_t get_modsel_param_index (const char *param_name)
void build_parameter_dictionary (CMap< TParameter *, CSGObject * > &dict)

Public Attributes

SGIOio
Parallelparallel
Versionversion
Parameterm_parameters
Parameterm_model_selection_parameters
ParameterMapm_parameter_map
uint32_t m_hash

Protected Member Functions

virtual bool train_machine (CFeatures *data=NULL)
CSVMsvm_proto ()
SGVector< int32_t > svm_svs ()
virtual bool init_machines_for_apply (CFeatures *data)
virtual bool is_acceptable_machine (CMachine *machine)
virtual bool init_machine_for_train (CFeatures *data)
virtual bool is_ready ()
virtual CMachineget_machine_from_trained (CMachine *machine)
virtual int32_t get_num_rhs_vectors ()
virtual void add_machine_subset (SGVector< index_t > subset)
virtual void remove_machine_subset ()
void init_strategy ()
void clear_machines ()
virtual bool train_require_labels () const
virtual TParametermigrate (DynArray< TParameter * > *param_base, const SGParamInfo *target)
virtual void one_to_one_migration_prepare (DynArray< TParameter * > *param_base, const SGParamInfo *target, TParameter *&replacement, TParameter *&to_migrate, char *old_name=NULL)
virtual void load_serializable_pre () throw (ShogunException)
virtual void load_serializable_post () throw (ShogunException)
virtual void save_serializable_pre () throw (ShogunException)
virtual void save_serializable_post () throw (ShogunException)
virtual bool update_parameter_hash ()

Protected Attributes

SCATTER_TYPE scatter_type
svm_problem problem
svm_parameter param
struct svm_model * model
float64_tnorm_wc
float64_tnorm_wcw
float64_t rho
int32_t m_num_classes
float64_t m_C
CKernelm_kernel
CMulticlassStrategym_multiclass_strategy
CMachinem_machine
CDynamicObjectArraym_machines
float64_t m_max_train_time
CLabelsm_labels
ESolverType m_solver_type
bool m_store_model_features
bool m_data_locked

Constructor & Destructor Documentation

default constructor

Definition at line 23 of file ScatterSVM.cpp.

constructor

Definition at line 30 of file ScatterSVM.cpp.

CScatterSVM ( float64_t  C,
CKernel k,
CLabels lab
)

constructor (using NO_BIAS as default scatter_type)

Parameters
Cconstant C
kkernel
lablabels

Definition at line 36 of file ScatterSVM.cpp.

~CScatterSVM ( )
virtual

default destructor

Definition at line 42 of file ScatterSVM.cpp.

Member Function Documentation

virtual void add_machine_subset ( SGVector< index_t subset)
protectedvirtualinherited

set subset to the features of the machine, deletes old one

Parameters
subsetsubset indices to set

Implements CMulticlassMachine.

Definition at line 153 of file KernelMulticlassMachine.h.

float64_t apply ( int32_t  num)
virtual

classify one example

Parameters
numnumber of example to classify
Returns
resulting classification

Definition at line 487 of file ScatterSVM.cpp.

CLabels * apply ( CFeatures data = NULL)
virtualinherited

apply machine to data if data is not specified apply to the current features

Parameters
data(test)data to be classified
Returns
classified labels

Definition at line 162 of file Machine.cpp.

CBinaryLabels * apply_binary ( CFeatures data = NULL)
virtualinherited

apply machine to data in means of binary classification problem

Reimplemented in CKernelMachine, COnlineLinearMachine, CWDSVMOcas, CLinearMachine, CDomainAdaptationSVMLinear, CDomainAdaptationSVM, and CPluginEstimate.

Definition at line 218 of file Machine.cpp.

CLatentLabels * apply_latent ( CFeatures data = NULL)
virtualinherited

apply machine to data in means of latent problem

Reimplemented in CLinearLatentMachine.

Definition at line 242 of file Machine.cpp.

CLabels * apply_locked ( SGVector< index_t indices)
virtualinherited

Applies a locked machine on a set of indices. Error if machine is not locked

Parameters
indicesindex vector (of locked features) that is predicted

Definition at line 197 of file Machine.cpp.

CBinaryLabels * apply_locked_binary ( SGVector< index_t indices)
virtualinherited

applies a locked machine on a set of indices for binary problems

Reimplemented in CKernelMachine, CMultitaskLinearMachine, and CMultitaskCompositeMachine.

Definition at line 248 of file Machine.cpp.

CLatentLabels * apply_locked_latent ( SGVector< index_t indices)
virtualinherited

applies a locked machine on a set of indices for latent problems

Definition at line 276 of file Machine.cpp.

CMulticlassLabels * apply_locked_multiclass ( SGVector< index_t indices)
virtualinherited

applies a locked machine on a set of indices for multiclass problems

Definition at line 262 of file Machine.cpp.

CRegressionLabels * apply_locked_regression ( SGVector< index_t indices)
virtualinherited

applies a locked machine on a set of indices for regression problems

Reimplemented in CKernelMachine.

Definition at line 255 of file Machine.cpp.

CStructuredLabels * apply_locked_structured ( SGVector< index_t indices)
virtualinherited

applies a locked machine on a set of indices for structured problems

Definition at line 269 of file Machine.cpp.

CMulticlassLabels * apply_multiclass ( CFeatures data = NULL)
virtualinherited

classify all examples

Returns
resulting labels

Reimplemented from CMachine.

Reimplemented in CGaussianNaiveBayes, and CQDA.

Definition at line 92 of file MulticlassMachine.cpp.

CMulticlassMultipleOutputLabels * apply_multiclass_multiple_output ( CFeatures data = NULL,
int32_t  n_outputs = 5
)
virtualinherited

classify all examples with multiple output

Returns
resulting labels

Definition at line 146 of file MulticlassMachine.cpp.

float64_t apply_one ( int32_t  vec_idx)
virtualinherited

classify one example

Parameters
vec_idx
Returns
label

Reimplemented from CMachine.

Reimplemented in CGaussianNaiveBayes.

Definition at line 234 of file MulticlassMachine.cpp.

CRegressionLabels * apply_regression ( CFeatures data = NULL)
virtualinherited

apply machine to data in means of regression problem

Reimplemented in CKernelMachine, CWDSVMOcas, COnlineLinearMachine, CGaussianProcessRegression, and CLinearMachine.

Definition at line 224 of file Machine.cpp.

CStructuredLabels * apply_structured ( CFeatures data = NULL)
virtualinherited

apply machine to data in means of SO classification problem

Reimplemented in CLinearStructuredOutputMachine.

Definition at line 236 of file Machine.cpp.

void build_parameter_dictionary ( CMap< TParameter *, CSGObject * > &  dict)
inherited

Builds a dictionary of all parameters in SGObject as well of those of SGObjects that are parameters of this object. Dictionary maps parameters to the objects that own them.

Parameters
dictdictionary of parameters to be built.

Definition at line 1204 of file SGObject.cpp.

CLabels * classify_one_vs_rest ( )
virtual

classify one vs rest

Returns
resulting labels

Definition at line 377 of file ScatterSVM.cpp.

void clear_machines ( )
protectedinherited

clear machines

Reimplemented in CNativeMulticlassMachine.

virtual CMachine* clone ( )
virtualinherited

clone

Reimplemented in CKernelMachine, and CLinearMachine.

Definition at line 294 of file Machine.h.

bool create_multiclass_svm ( int32_t  num_classes)
inherited

create multiclass SVM. Appends the appropriate number of svm pointer (depending on multiclass strategy) to m_machines. All pointers are initialized with NULL.

Parameters
num_classesnumber of classes in SVM
Returns
if creation was successful

Definition at line 46 of file MulticlassSVM.cpp.

void data_lock ( CLabels labs,
CFeatures features
)
virtualinherited

Locks the machine on given labels and data. After this call, only train_locked and apply_locked may be called

Only possible if supports_locking() returns true

Parameters
labslabels used for locking
featuresfeatures used for locking

Reimplemented in CKernelMachine.

Definition at line 122 of file Machine.cpp.

void data_unlock ( )
virtualinherited

Unlocks a locked machine and restores previous state

Reimplemented in CKernelMachine.

Definition at line 153 of file Machine.cpp.

virtual CSGObject* deep_copy ( ) const
virtualinherited

A deep copy. All the instance variables will also be copied.

Definition at line 131 of file SGObject.h.

bool get_batch_computation_enabled ( )
inherited

get batch computation option of base SVM

Returns
whether batch computation of base SVM is enabled

Definition at line 144 of file MulticlassSVM.h.

bool get_bias_enabled ( )
inherited

get bias enabled options of base SVM

Returns
whether bias of base SVM is enabled

Definition at line 134 of file MulticlassSVM.h.

float64_t get_C ( )
inherited

get C of base SVM

Returns
C of base SVM

Definition at line 113 of file MulticlassSVM.h.

virtual EMachineType get_classifier_type ( )
virtual

get classifier type

Returns
classifier type LIBSVM

Reimplemented from CMachine.

Definition at line 77 of file ScatterSVM.h.

float64_t get_epsilon ( )
inherited

get epsilon of base SVM

Returns
epsilon of base SVM

Definition at line 103 of file MulticlassSVM.h.

SGIO * get_global_io ( )
inherited

get the io object

Returns
io object

Definition at line 224 of file SGObject.cpp.

Parallel * get_global_parallel ( )
inherited

get the parallel object

Returns
parallel object

Definition at line 259 of file SGObject.cpp.

Version * get_global_version ( )
inherited

get the version object

Returns
version object

Definition at line 272 of file SGObject.cpp.

CKernel* get_kernel ( )
inherited

get kernel

Returns
kernel

Definition at line 78 of file KernelMulticlassMachine.h.

CLabels * get_labels ( )
virtualinherited

get labels

Returns
labels

Definition at line 86 of file Machine.cpp.

bool get_linadd_enabled ( )
inherited

get linadd option of base SVM

Returns
whether linadd of base SVM is enabled

Definition at line 139 of file MulticlassSVM.h.

SGVector<float64_t> get_linear_term ( )
inherited

get linear term of base SVM

Returns
linear term of base SVM

Definition at line 93 of file MulticlassSVM.h.

CMachine* get_machine ( int32_t  num) const
inherited

get machine

Parameters
numindex of machine to get
Returns
SVM at number num

Definition at line 71 of file MulticlassMachine.h.

virtual CMachine* get_machine_from_trained ( CMachine machine)
protectedvirtualinherited

construct kernel machine from given kernel machine

Implements CMulticlassMachine.

Definition at line 138 of file KernelMulticlassMachine.h.

virtual EProblemType get_machine_problem_type ( ) const
virtualinherited

get problem type

Reimplemented from CMachine.

Definition at line 46 of file BaseMulticlassMachine.h.

float64_t get_max_train_time ( )
inherited

get maximum training time

Returns
maximum training time

Definition at line 97 of file Machine.cpp.

SGStringList< char > get_modelsel_names ( )
inherited
Returns
vector of names of all parameters which are registered for model selection

Definition at line 1108 of file SGObject.cpp.

char * get_modsel_param_descr ( const char *  param_name)
inherited

Returns description of a given parameter string, if it exists. SG_ERROR otherwise

Parameters
param_namename of the parameter
Returns
description of the parameter

Definition at line 1132 of file SGObject.cpp.

index_t get_modsel_param_index ( const char *  param_name)
inherited

Returns index of model selection parameter with provided index

Parameters
param_namename of model selection parameter
Returns
index of model selection parameter with provided name, -1 if there is no such

Definition at line 1145 of file SGObject.cpp.

CMulticlassStrategy* get_multiclass_strategy ( ) const
inherited

get the type of multiclass'ness

Returns
multiclass type one vs one etc

Definition at line 111 of file MulticlassMachine.h.

virtual const char* get_name ( ) const
virtual
Returns
object name

Reimplemented from CKernelMulticlassMachine.

Definition at line 93 of file ScatterSVM.h.

float64_t get_nu ( )
inherited

get nu of base SVM

Returns
nu of base SVM

Definition at line 108 of file MulticlassSVM.h.

int32_t get_num_machines ( ) const
inherited

get number of machines

Returns
number of machines

Definition at line 40 of file BaseMulticlassMachine.h.

virtual int32_t get_num_rhs_vectors ( )
protectedvirtualinherited

return number of rhs feature vectors

Implements CMulticlassMachine.

Definition at line 144 of file KernelMulticlassMachine.h.

float64_t get_objective ( )
inherited

get objective of base SVM

Returns
objective of base SVM

Definition at line 128 of file MulticlassSVM.h.

int32_t get_qpsize ( )
inherited

get qpsize of base SVM

Returns
qpsize of base SVM

Definition at line 118 of file MulticlassSVM.h.

CRejectionStrategy* get_rejection_strategy ( ) const
inherited

returns rejection strategy

Returns
rejection strategy

Definition at line 121 of file MulticlassMachine.h.

bool get_shrinking_enabled ( )
inherited

get shrinking option of base SVM

Returns
whether shrinking of base SVM is enabled

Definition at line 123 of file MulticlassSVM.h.

ESolverType get_solver_type ( )
inherited

get solver type

Returns
solver

Definition at line 112 of file Machine.cpp.

float64_t get_submachine_output ( int32_t  i,
int32_t  num
)
virtualinherited

get output of i-th submachine for num-th vector

Parameters
inumber of submachine
numnumber of feature vector
Returns
output

Definition at line 79 of file MulticlassMachine.cpp.

CBinaryLabels * get_submachine_outputs ( int32_t  i)
virtualinherited

get outputs of i-th submachine

Parameters
inumber of submachine
Returns
outputs

Reimplemented in CDomainAdaptationMulticlassLibLinear.

Definition at line 70 of file MulticlassMachine.cpp.

CSVM* get_svm ( int32_t  num)
inherited

get SVM

Parameters
numwhich SVM to get
Returns
SVM at number num

Definition at line 74 of file MulticlassSVM.h.

float64_t get_tube_epsilon ( )
inherited

get tube epsilon of base SVM

Returns
tube epsilon of base SVM

Definition at line 98 of file MulticlassSVM.h.

virtual bool init_machine_for_train ( CFeatures data)
protectedvirtualinherited

init machine for training with kernel init

Implements CMulticlassMachine.

Definition at line 95 of file KernelMulticlassMachine.h.

bool init_machines_for_apply ( CFeatures data)
protectedvirtualinherited

initializes machines (OvO, OvR) for apply

Reimplemented from CKernelMulticlassMachine.

Definition at line 71 of file MulticlassSVM.cpp.

void init_strategy ( )
protectedinherited

init strategy

Reimplemented in CNativeMulticlassMachine.

Definition at line 64 of file MulticlassMachine.cpp.

virtual bool is_acceptable_machine ( CMachine machine)
protectedvirtualinherited

is machine an SVM instance

Reimplemented from CMulticlassMachine.

Definition at line 224 of file MulticlassSVM.h.

bool is_data_locked ( ) const
inherited
Returns
whether this machine is locked

Definition at line 284 of file Machine.h.

bool is_generic ( EPrimitiveType *  generic) const
virtualinherited

If the SGSerializable is a class template then TRUE will be returned and GENERIC is set to the type of the generic.

Parameters
genericset to the type of the generic if returning TRUE
Returns
TRUE if a class template.

Definition at line 278 of file SGObject.cpp.

virtual bool is_label_valid ( CLabels lab) const
virtualinherited

check whether the labels is valid.

Parameters
labthe labels being checked, guaranteed to be non-NULL

Reimplemented from CMachine.

Definition at line 55 of file BaseMulticlassMachine.h.

virtual bool is_ready ( )
protectedvirtualinherited

check kernel availability

Implements CMulticlassMachine.

Definition at line 129 of file KernelMulticlassMachine.h.

bool load ( FILE *  svm_file)
inherited

load a Multiclass SVM from file

Parameters
svm_filethe file handle

Definition at line 109 of file MulticlassSVM.cpp.

DynArray< TParameter * > * load_all_file_parameters ( int32_t  file_version,
int32_t  current_version,
CSerializableFile file,
const char *  prefix = ""
)
inherited

maps all parameters of this instance to the provided file version and loads all parameter data from the file into an array, which is sorted (basically calls load_file_parameter(...) for all parameters and puts all results into a sorted array)

Parameters
file_versionparameter version of the file
current_versionversion from which mapping begins (you want to use VERSION_PARAMETER for this in most cases)
filefile to load from
prefixprefix for members
Returns
(sorted) array of created TParameter instances with file data

Definition at line 679 of file SGObject.cpp.

DynArray< TParameter * > * load_file_parameters ( const SGParamInfo param_info,
int32_t  file_version,
CSerializableFile file,
const char *  prefix = ""
)
inherited

loads some specified parameters from a file with a specified version The provided parameter info has a version which is recursively mapped until the file parameter version is reached. Note that there may be possibly multiple parameters in the mapping, therefore, a set of TParameter instances is returned

Parameters
param_infoinformation of parameter
file_versionparameter version of the file, must be <= provided parameter version
filefile to load from
prefixprefix for members
Returns
new array with TParameter instances with the attached data

Definition at line 523 of file SGObject.cpp.

bool load_serializable ( CSerializableFile file,
const char *  prefix = "",
int32_t  param_version = VERSION_PARAMETER
)
virtualinherited

Load this object from file. If it will fail (returning FALSE) then this object will contain inconsistent data and should not be used!

Parameters
filewhere to load from
prefixprefix for members
param_version(optional) a parameter version different to (this is mainly for testing, better do not use)
Returns
TRUE if done, otherwise FALSE

Reimplemented in CModelSelectionParameters.

Definition at line 354 of file SGObject.cpp.

void load_serializable_post ( ) throw (ShogunException)
protectedvirtualinherited

Can (optionally) be overridden to post-initialize some member variables which are not PARAMETER::ADD'ed. Make sure that at first the overridden method BASE_CLASS::LOAD_SERIALIZABLE_POST is called.

Exceptions
ShogunExceptionWill be thrown if an error occurres.

Reimplemented in CKernel, CWeightedDegreePositionStringKernel, CList, CAlphabet, CLinearHMM, CGaussianKernel, CANOVAKernel, CInverseMultiQuadricKernel, CCircularKernel, and CExponentialKernel.

Definition at line 1033 of file SGObject.cpp.

void load_serializable_pre ( ) throw (ShogunException)
protectedvirtualinherited

Can (optionally) be overridden to pre-initialize some member variables which are not PARAMETER::ADD'ed. Make sure that at first the overridden method BASE_CLASS::LOAD_SERIALIZABLE_PRE is called.

Exceptions
ShogunExceptionWill be thrown if an error occurres.

Definition at line 1028 of file SGObject.cpp.

MACHINE_PROBLEM_TYPE ( PT_MULTICLASS  )
inherited

problem type

void map_parameters ( DynArray< TParameter * > *  param_base,
int32_t &  base_version,
DynArray< const SGParamInfo * > *  target_param_infos
)
inherited

Takes a set of TParameter instances (base) with a certain version and a set of target parameter infos and recursively maps the base level wise to the current version using CSGObject::migrate(...). The base is replaced. After this call, the base version containing parameters should be of same version/type as the initial target parameter infos. Note for this to work, the migrate methods and all the internal parameter mappings have to match

Parameters
param_baseset of TParameter instances that are mapped to the provided target parameter infos
base_versionversion of the parameter base
target_param_infosset of SGParamInfo instances that specify the target parameter base

Definition at line 717 of file SGObject.cpp.

TParameter * migrate ( DynArray< TParameter * > *  param_base,
const SGParamInfo target
)
protectedvirtualinherited

creates a new TParameter instance, which contains migrated data from the version that is provided. The provided parameter data base is used for migration, this base is a collection of all parameter data of the previous version. Migration is done FROM the data in param_base TO the provided param info Migration is always one version step. Method has to be implemented in subclasses, if no match is found, base method has to be called.

If there is an element in the param_base which equals the target, a copy of the element is returned. This represents the case when nothing has changed and therefore, the migrate method is not overloaded in a subclass

Parameters
param_baseset of TParameter instances to use for migration
targetparameter info for the resulting TParameter
Returns
a new TParameter instance with migrated data from the base of the type which is specified by the target parameter

Definition at line 923 of file SGObject.cpp.

void one_to_one_migration_prepare ( DynArray< TParameter * > *  param_base,
const SGParamInfo target,
TParameter *&  replacement,
TParameter *&  to_migrate,
char *  old_name = NULL
)
protectedvirtualinherited

This method prepares everything for a one-to-one parameter migration. One to one here means that only ONE element of the parameter base is needed for the migration (the one with the same name as the target). Data is allocated for the target (in the type as provided in the target SGParamInfo), and a corresponding new TParameter instance is written to replacement. The to_migrate pointer points to the single needed TParameter instance needed for migration. If a name change happened, the old name may be specified by old_name. In addition, the m_delete_data flag of to_migrate is set to true. So if you want to migrate data, the only thing to do after this call is converting the data in the m_parameter fields. If unsure how to use - have a look into an example for this. (base_migration_type_conversion.cpp for example)

Parameters
param_baseset of TParameter instances to use for migration
targetparameter info for the resulting TParameter
replacement(used as output) here the TParameter instance which is returned by migration is created into
to_migratethe only source that is used for migration
old_namewith this parameter, a name change may be specified

Definition at line 864 of file SGObject.cpp.

virtual void post_lock ( CLabels labs,
CFeatures features
)
virtualinherited

post lock

Reimplemented in CMultitaskLinearMachine, and CMultitaskCompositeMachine.

Definition at line 275 of file Machine.h.

void print_modsel_params ( )
inherited

prints all parameter registered for model selection and their type

Definition at line 1084 of file SGObject.cpp.

void print_serializable ( const char *  prefix = "")
virtualinherited

prints registered parameters out

Parameters
prefixprefix for members

Definition at line 290 of file SGObject.cpp.

virtual void remove_machine_subset ( )
protectedvirtualinherited

deletes any subset set to the features of the machine

Implements CMulticlassMachine.

Definition at line 159 of file KernelMulticlassMachine.h.

bool save ( FILE *  svm_file)
inherited

write a Multiclass SVM to a file

Parameters
svm_filethe file handle

Definition at line 257 of file MulticlassSVM.cpp.

bool save_serializable ( CSerializableFile file,
const char *  prefix = "",
int32_t  param_version = VERSION_PARAMETER
)
virtualinherited

Save this object to file.

Parameters
filewhere to save the object; will be closed during returning if PREFIX is an empty string.
prefixprefix for members
param_version(optional) a parameter version different to (this is mainly for testing, better do not use)
Returns
TRUE if done, otherwise FALSE

Reimplemented in CModelSelectionParameters.

Definition at line 296 of file SGObject.cpp.

void save_serializable_post ( ) throw (ShogunException)
protectedvirtualinherited

Can (optionally) be overridden to post-initialize some member variables which are not PARAMETER::ADD'ed. Make sure that at first the overridden method BASE_CLASS::SAVE_SERIALIZABLE_POST is called.

Exceptions
ShogunExceptionWill be thrown if an error occurres.

Reimplemented in CKernel.

Definition at line 1043 of file SGObject.cpp.

void save_serializable_pre ( ) throw (ShogunException)
protectedvirtualinherited

Can (optionally) be overridden to pre-initialize some member variables which are not PARAMETER::ADD'ed. Make sure that at first the overridden method BASE_CLASS::SAVE_SERIALIZABLE_PRE is called.

Exceptions
ShogunExceptionWill be thrown if an error occurres.

Reimplemented in CKernel.

Definition at line 1038 of file SGObject.cpp.

void set_batch_computation_enabled ( bool  enable)
inherited

set batch computation option

Parameters
enablewhether batch computation should be enabled

Definition at line 205 of file MulticlassSVM.h.

void set_bias_enabled ( bool  enable_bias)
inherited

set bias option

Parameters
enable_biaswhether bias should be enabled

Definition at line 195 of file MulticlassSVM.h.

void set_C ( float64_t  C)
inherited

set C parameters

Parameters
Cset regularization parameter

Definition at line 160 of file MulticlassSVM.h.

void set_defaults ( int32_t  num_sv = 0)
inherited

set default number of support vectors

Parameters
num_svnumber of support vectors

Definition at line 150 of file MulticlassSVM.h.

void set_epsilon ( float64_t  eps)
inherited

set epsilon value

Parameters
epsepsilon value

Definition at line 165 of file MulticlassSVM.h.

void set_generic< floatmax_t > ( )
inherited

set generic type to T

Definition at line 41 of file SGObject.cpp.

void set_global_io ( SGIO io)
inherited

set the io object

Parameters
ioio object to use

Definition at line 217 of file SGObject.cpp.

void set_global_parallel ( Parallel parallel)
inherited

set the parallel object

Parameters
parallelparallel object to use

Definition at line 230 of file SGObject.cpp.

void set_global_version ( Version version)
inherited

set the version object

Parameters
versionversion object to use

Definition at line 265 of file SGObject.cpp.

void set_kernel ( CKernel k)
inherited

set kernel

Parameters
kkernel

Definition at line 66 of file KernelMulticlassMachine.h.

void set_labels ( CLabels lab)
virtualinherited

set labels

Parameters
lablabels

Reimplemented from CMachine.

Definition at line 51 of file MulticlassMachine.cpp.

void set_linadd_enabled ( bool  enable)
inherited

set linadd option

Parameters
enablewhether linadd should be enabled

Definition at line 200 of file MulticlassSVM.h.

void set_linear_term ( SGVector< float64_t linear_term)
inherited

set linear term

Parameters
linear_termlinear term vector

Definition at line 155 of file MulticlassSVM.h.

bool set_machine ( int32_t  num,
CMachine machine
)
inherited

set machine

Parameters
numindex of machine
machinemachine to set
Returns
if setting was successful

Definition at line 56 of file MulticlassMachine.h.

void set_max_train_time ( float64_t  t)
inherited

set maximum training time

Parameters
tmaximimum training time

Definition at line 92 of file Machine.cpp.

void set_nu ( float64_t  nue)
inherited

set nu value

Parameters
nuenu value

Definition at line 170 of file MulticlassSVM.h.

void set_objective ( float64_t  v)
inherited

set objective value

Parameters
vobjective value

Definition at line 190 of file MulticlassSVM.h.

void set_qpsize ( int32_t  qps)
inherited

set set QP size

Parameters
qpsqp size

Definition at line 180 of file MulticlassSVM.h.

void set_rejection_strategy ( CRejectionStrategy rejection_strategy)
inherited

sets rejection strategy

Parameters
rejection_strategyrejection strategy to be set

Definition at line 130 of file MulticlassMachine.h.

void set_shrinking_enabled ( bool  enable)
inherited

set shrinking option

Parameters
enablewhether shrinking should be enabled

Definition at line 185 of file MulticlassSVM.h.

void set_solver_type ( ESolverType  st)
inherited

set solver type

Parameters
stsolver type

Definition at line 107 of file Machine.cpp.

void set_store_model_features ( bool  store_model)
virtualinherited

Setter for store-model-features-after-training flag

Parameters
store_modelwhether model should be stored after training

Definition at line 117 of file Machine.cpp.

bool set_svm ( int32_t  num,
CSVM svm
)
inherited

set SVM

Parameters
numnumber to set
svmSVM to set
Returns
if setting was successful

Definition at line 61 of file MulticlassSVM.cpp.

void set_tube_epsilon ( float64_t  eps)
inherited

set tube epsilon value

Parameters
epstube epsilon value

Definition at line 175 of file MulticlassSVM.h.

virtual CSGObject* shallow_copy ( ) const
virtualinherited

A shallow copy. All the SGObject instance variables will be simply assigned and SG_REF-ed.

Reimplemented in CGaussianKernel.

Definition at line 122 of file SGObject.h.

void store_model_features ( )
virtualinherited

Stores feature data of underlying model.

Need to store the SVs for all sub-machines. We make a union of the SVs for all sub-machines, store the union and adjust the sub-machines to index into the union.

Reimplemented from CMachine.

Definition at line 17 of file KernelMulticlassMachine.cpp.

virtual bool supports_locking ( ) const
virtualinherited
Returns
whether this machine supports locking

Reimplemented in CKernelMachine, CMultitaskLinearMachine, and CMultitaskCompositeMachine.

Definition at line 281 of file Machine.h.

CSVM* svm_proto ( )
protectedinherited

casts m_machine to SVM

Definition at line 210 of file MulticlassSVM.h.

SGVector<int32_t> svm_svs ( )
protectedinherited

returns support vectors

Definition at line 215 of file MulticlassSVM.h.

bool train ( CFeatures data = NULL)
virtualinherited

train machine

Parameters
datatraining data (parameter can be avoided if distance or kernel-based classifiers are used and distance/kernels are initialized with train data). If flag is set, model features will be stored after training.
Returns
whether training was successful

Reimplemented in CRelaxedTree, CSGDQN, and COnlineSVMSGD.

Definition at line 49 of file Machine.cpp.

virtual bool train_locked ( SGVector< index_t indices)
virtualinherited

Trains a locked machine on a set of indices. Error if machine is not locked

NOT IMPLEMENTED

Parameters
indicesindex vector (of locked features) that is used for training
Returns
whether training was successful

Reimplemented in CKernelMachine, CMultitaskLinearMachine, and CMultitaskCompositeMachine.

Definition at line 227 of file Machine.h.

bool train_machine ( CFeatures data = NULL)
protectedvirtual

train SVM classifier

Parameters
datatraining data (parameter can be avoided if distance or kernel-based classifiers are used and distance/kernels are initialized with train data)
Returns
whether training was successful

Reimplemented from CMulticlassMachine.

Definition at line 48 of file ScatterSVM.cpp.

virtual bool train_require_labels ( ) const
protectedvirtualinherited

returns whether machine require labels for training

Reimplemented in COnlineLinearMachine, CKMeans, CHierarchical, CLinearLatentMachine, CVwConditionalProbabilityTree, CConditionalProbabilityTree, and CLibSVMOneClass.

Definition at line 349 of file Machine.h.

void unset_generic ( )
inherited

unset generic type

this has to be called in classes specializing a template class

Definition at line 285 of file SGObject.cpp.

bool update_parameter_hash ( )
protectedvirtualinherited

Updates the hash of current parameter combination.

Returns
bool if parameter combination has changed since last update.

Definition at line 237 of file SGObject.cpp.

Member Data Documentation

SGIO* io
inherited

io

Definition at line 462 of file SGObject.h.

float64_t m_C
protectedinherited

C regularization constant

Definition at line 239 of file MulticlassSVM.h.

bool m_data_locked
protectedinherited

whether data is locked

Definition at line 365 of file Machine.h.

uint32_t m_hash
inherited

Hash of parameter values

Definition at line 480 of file SGObject.h.

CKernel* m_kernel
protectedinherited

kernel

Definition at line 167 of file KernelMulticlassMachine.h.

CLabels* m_labels
protectedinherited

labels

Definition at line 356 of file Machine.h.

CMachine* m_machine
protectedinherited

machine

Definition at line 191 of file MulticlassMachine.h.

CDynamicObjectArray* m_machines
protectedinherited

machines

Definition at line 62 of file BaseMulticlassMachine.h.

float64_t m_max_train_time
protectedinherited

maximum training time

Definition at line 353 of file Machine.h.

Parameter* m_model_selection_parameters
inherited

model selection parameters

Definition at line 474 of file SGObject.h.

CMulticlassStrategy* m_multiclass_strategy
protectedinherited

type of multiclass strategy

Definition at line 188 of file MulticlassMachine.h.

int32_t m_num_classes
protected

number of classes

Definition at line 136 of file ScatterSVM.h.

ParameterMap* m_parameter_map
inherited

map for different parameter versions

Definition at line 477 of file SGObject.h.

Parameter* m_parameters
inherited

parameters

Definition at line 471 of file SGObject.h.

ESolverType m_solver_type
protectedinherited

solver type

Definition at line 359 of file Machine.h.

bool m_store_model_features
protectedinherited

whether model features should be stored after training

Definition at line 362 of file Machine.h.

struct svm_model* model
protected

SVM model

Definition at line 124 of file ScatterSVM.h.

float64_t* norm_wc
protected

norm of w_c

Definition at line 127 of file ScatterSVM.h.

float64_t* norm_wcw
protected

norm of w_cw

Definition at line 130 of file ScatterSVM.h.

Parallel* parallel
inherited

parallel

Definition at line 465 of file SGObject.h.

svm_parameter param
protected

SVM param

Definition at line 121 of file ScatterSVM.h.

svm_problem problem
protected

SVM problem

Definition at line 119 of file ScatterSVM.h.

float64_t rho
protected

ScatterSVM rho

Definition at line 133 of file ScatterSVM.h.

SCATTER_TYPE scatter_type
protected

type of scatter SVM

Definition at line 116 of file ScatterSVM.h.

Version* version
inherited

version

Definition at line 468 of file SGObject.h.


The documentation for this class was generated from the following files:

SHOGUN Machine Learning Toolbox - Documentation
