CIsomap Class Reference

---

Detailed Description

the class Isomap used to preprocess data using K-Isomap algorithm as described in

Silva, V. D., & Tenenbaum, J. B. (2003). Global versus local methods in nonlinear dimensionality reduction. Advances in Neural Information Processing Systems 15, 15(Figure 2), 721-728. MIT Press. Retrieved from http://citeseerx.ist.psu.edu/viewdoc/download?doi=10.1.1.9.3407&rep=rep1&type=pdf

Shortest paths are being computed with Dijkstra's algorithm with heap in parallel. Due to sparsity of the kNN graph Fibonacci Heap with amortized O(1) Extract-Min operation time complexity is used.

It is possible to apply preprocessor to specified distance using apply_to_distance.

Definition at line 47 of file Isomap.h.

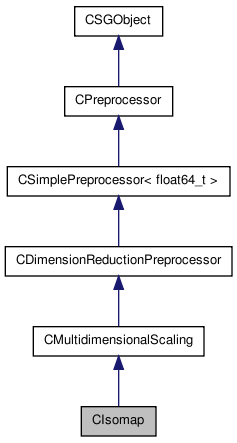

Inheritance diagram for CIsomap:

List of all members.

Public Member Functions
	CIsomap ()
virtual	~CIsomap ()
virtual bool	init (CFeatures *features)
virtual void	cleanup ()
virtual CSimpleFeatures < float64_t > *	apply_to_distance (CDistance *distance)
virtual SGMatrix< float64_t >	apply_to_feature_matrix (CFeatures *features)
virtual SGVector< float64_t >	apply_to_feature_vector (SGVector< float64_t > vector)
virtual const char *	get_name () const
virtual EPreprocessorType	get_type () const
void	set_k (int32_t k)
int32_t	get_k ()
Protected Member Functions
void	init ()
SGMatrix< float64_t >	isomap_distance (SGMatrix< float64_t > D_matrix)
Static Protected Member Functions
static void *	run_dijkstra_thread (void *p)
Protected Attributes
int32_t	m_k

---

Constructor & Destructor Documentation

CIsomap

(

)

Definition at line 57 of file Isomap.cpp.

~CIsomap

(

)

[virtual]

Definition at line 69 of file Isomap.cpp.

---

Member Function Documentation

CSimpleFeatures< float64_t > * apply_to_distance

(

CDistance *

distance

)

[virtual]

apply preprocessor to CDistance

Parameters:

distance

distance

Returns:

embedded features

Reimplemented from CMultidimensionalScaling.

Definition at line 82 of file Isomap.cpp.

SGMatrix< float64_t > apply_to_feature_matrix

(

CFeatures *

features

)

[virtual]

apply preprocessor to features

Parameters:

features

Returns:

embedded feature matrix

Reimplemented from CMultidimensionalScaling.

Definition at line 100 of file Isomap.cpp.

SGVector< float64_t > apply_to_feature_vector

(

SGVector< float64_t >

vector

)

[virtual]

apply preprocessor to feature vector

Parameters:

vector

Reimplemented from CMultidimensionalScaling.

Definition at line 130 of file Isomap.cpp.

void cleanup

(

)

[virtual]

empty cleanup

Reimplemented from CMultidimensionalScaling.

Definition at line 78 of file Isomap.cpp.

int32_t get_k

(

)

getter for k parameter

Returns:

k value

Definition at line 101 of file Isomap.h.

virtual const char* get_name

(

void

)

const [virtual]

get name

Reimplemented from CMultidimensionalScaling.

Definition at line 84 of file Isomap.h.

virtual EPreprocessorType get_type

(

)

const [virtual]

get type

Reimplemented from CMultidimensionalScaling.

Definition at line 87 of file Isomap.h.

bool init

(

CFeatures *

features

)

[virtual]

empty init

Parameters:

features

Reimplemented from CMultidimensionalScaling.

Definition at line 73 of file Isomap.cpp.

void init

(

void

)

[protected]

default init

Reimplemented from CMultidimensionalScaling.

Definition at line 62 of file Isomap.cpp.

SGMatrix< float64_t > isomap_distance

(

SGMatrix< float64_t >

D_matrix

)

[protected]

approximate geodesic distance with shortest path in kNN graph

Parameters:

D_matrix

distance matrix (deleted on exit)

Returns:

approximate geodesic distance matrix

Definition at line 136 of file Isomap.cpp.

void * run_dijkstra_thread

(

void *

p

)

[static, protected]

run dijkstra thread

Parameters:

p

thread params

Definition at line 256 of file Isomap.cpp.

void set_k

(

int32_t

k

)

setter for k parameter

Parameters:

k

Definition at line 92 of file Isomap.h.

---

Member Data Documentation

int32_t m_k [protected]

k, number of neighbors for K-Isomap

Definition at line 110 of file Isomap.h.

---

The documentation for this class was generated from the following files:

• Isomap.h
• Isomap.cpp
