CLaplacianEigenmaps Class Reference


Detailed Description

the class LaplacianEigenmaps used to preprocess data using Laplacian Eigenmaps algorithm as described in:

Belkin, M., & Niyogi, P. (2002). Laplacian Eigenmaps and Spectral Techniques for Embedding and Clustering. Science, 14, 585-591. MIT Press. Retrieved from http://citeseerx.ist.psu.edu/viewdoc/download?doi=10.1.1.19.9400&rep=rep1&type=pdf

Note that the algorithm is very sensitive to the heat distribution coefficient and number of neighbors in the nearest neighbor graph. No connectivity check is provided, so the preprocessor will not produce reasonable embeddings if the k value makes a graph that is not connected.

This implementation is not parallel due to performance issues. Generalized eigenproblem is the bottleneck for this algorithm.

Solving of generalized eigenproblem involves LAPACK DSYGVX routine and requires extra memory for right-hand side matrix storage. If ARPACK is available then DSAUPD/DSEUPD is used with no extra memory usage.

Definition at line 48 of file LaplacianEigenmaps.h.

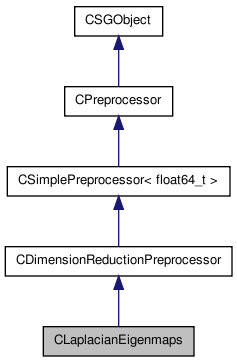

Inheritance diagram for CLaplacianEigenmaps:
Inheritance graph
[legend]

List of all members.

Public Member Functions

 CLaplacianEigenmaps ()
virtual ~CLaplacianEigenmaps ()
virtual bool init (CFeatures *features)
virtual void cleanup ()
virtual SGMatrix< float64_tapply_to_feature_matrix (CFeatures *features)
virtual SGVector< float64_tapply_to_feature_vector (SGVector< float64_t > vector)
void set_k (int32_t k)
int32_t get_k ()
void set_tau (float64_t tau)
float64_t get_tau ()
virtual const char * get_name () const
virtual EPreprocessorType get_type () const

Protected Member Functions

void init ()

Protected Attributes

int32_t m_k
float64_t m_tau

Constructor & Destructor Documentation

constructor

Definition at line 25 of file LaplacianEigenmaps.cpp.

~CLaplacianEigenmaps (  )  [virtual]

destructor

Definition at line 40 of file LaplacianEigenmaps.cpp.


Member Function Documentation

SGMatrix< float64_t > apply_to_feature_matrix ( CFeatures features  )  [virtual]

apply preprocessor to feature matrix

Parameters:
features

Reimplemented from CDimensionReductionPreprocessor.

Definition at line 53 of file LaplacianEigenmaps.cpp.

SGVector< float64_t > apply_to_feature_vector ( SGVector< float64_t vector  )  [virtual]

apply preproc to feature vector

Parameters:
vector

Reimplemented from CDimensionReductionPreprocessor.

Definition at line 193 of file LaplacianEigenmaps.cpp.

void cleanup (  )  [virtual]

cleanup

Reimplemented from CDimensionReductionPreprocessor.

Definition at line 49 of file LaplacianEigenmaps.cpp.

int32_t get_k (  )

getter for K parameter

Returns:
k value

Definition at line 89 of file LaplacianEigenmaps.h.

virtual const char* get_name ( void   )  const [virtual]

get name

Reimplemented from CDimensionReductionPreprocessor.

Definition at line 111 of file LaplacianEigenmaps.h.

float64_t get_tau (  )

getter for TAU parameter

Returns:
tau value

Definition at line 105 of file LaplacianEigenmaps.h.

virtual EPreprocessorType get_type (  )  const [virtual]

get type

Reimplemented from CDimensionReductionPreprocessor.

Definition at line 114 of file LaplacianEigenmaps.h.

bool init ( CFeatures features  )  [virtual]

init

Parameters:
features

Reimplemented from CDimensionReductionPreprocessor.

Definition at line 44 of file LaplacianEigenmaps.cpp.

void init ( void   )  [protected]

init

Reimplemented from CDimensionReductionPreprocessor.

Definition at line 31 of file LaplacianEigenmaps.cpp.

void set_k ( int32_t  k  )

setter for K parameter

Parameters:
k k value

Definition at line 81 of file LaplacianEigenmaps.h.

void set_tau ( float64_t  tau  )

setter for TAU parameter

Parameters:
tau tau value

Definition at line 97 of file LaplacianEigenmaps.h.


Member Data Documentation

int32_t m_k [protected]

number of neighbors

Definition at line 124 of file LaplacianEigenmaps.h.

float64_t m_tau [protected]

tau parameter of heat distribution

Definition at line 127 of file LaplacianEigenmaps.h.


The documentation for this class was generated from the following files:
