CKLLowerTriangularInferenceMethod类 参考abstract

详细描述

The KL approximation inference method class.

The class is implemented based on the KL method in the Challis's paper, which uses lower triangular represention.

Code adapted from http://hannes.nickisch.org/code/approxXX.tar.gz and Gaussian Process Machine Learning Toolbox http://www.gaussianprocess.org/gpml/code/matlab/doc/ and the reference paper is Challis, Edward, and David Barber. "Concave Gaussian variational approximations for inference in large-scale Bayesian linear models." International conference on Artificial Intelligence and Statistics. 2011.

Note that "lowerTriangular" means lowerTriangular represention of the variational co-variance matrix is explicitly used in inference

在文件 KLLowerTriangularInferenceMethod.h69 行定义.

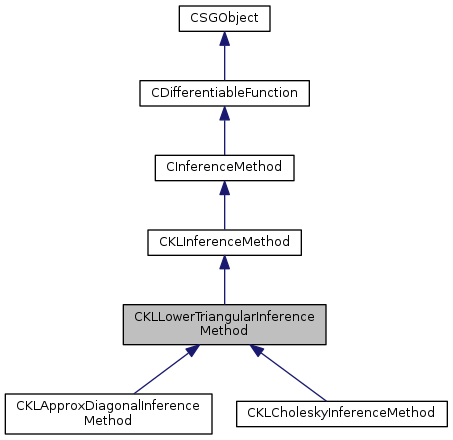

类 CKLLowerTriangularInferenceMethod 继承关系图:
Inheritance graph
[图例]

Public 成员函数

 CKLLowerTriangularInferenceMethod ()

 CKLLowerTriangularInferenceMethod (CKernel *kernel, CFeatures *features, CMeanFunction *mean, CLabels *labels, CLikelihoodModel *model)

virtual ~CKLLowerTriangularInferenceMethod ()

virtual const char * get_name () const

virtual SGVector< float64_tget_diagonal_vector ()

virtual EInferenceType get_inference_type () const

virtual float64_t get_negative_log_marginal_likelihood ()

virtual SGVector< float64_tget_posterior_mean ()

virtual SGMatrix< float64_tget_posterior_covariance ()

virtual bool supports_regression () const

virtual bool supports_binary () const

virtual void set_model (CLikelihoodModel *mod)

virtual void update ()

virtual void set_lbfgs_parameters (int m=100, int max_linesearch=1000, int linesearch=LBFGS_LINESEARCH_BACKTRACKING_STRONG_WOLFE, int max_iterations=1000, float64_t delta=0.0, int past=0, float64_t epsilon=1e-5, float64_t min_step=1e-20, float64_t max_step=1e+20, float64_t ftol=1e-4, float64_t wolfe=0.9, float64_t gtol=0.9, float64_t xtol=1e-16, float64_t orthantwise_c=0.0, int orthantwise_start=0, int orthantwise_end=1)

virtual SGMatrix< float64_tget_cholesky ()

virtual void set_noise_factor (float64_t noise_factor)

virtual void set_max_attempt (index_t max_attempt)

virtual void set_exp_factor (float64_t exp_factor)

virtual void set_min_coeff_kernel (float64_t min_coeff_kernel)

float64_t get_marginal_likelihood_estimate (int32_t num_importance_samples=1, float64_t ridge_size=1e-15)

virtual CMap< TParameter
*, SGVector< float64_t > > *
get_negative_log_marginal_likelihood_derivatives (CMap< TParameter *, CSGObject * > *parameters)

virtual CMap< TParameter
*, SGVector< float64_t > > *
get_gradient (CMap< TParameter *, CSGObject * > *parameters)

virtual SGVector< float64_tget_value ()

virtual CFeaturesget_features ()

virtual void set_features (CFeatures *feat)

virtual CKernelget_kernel ()

virtual void set_kernel (CKernel *kern)

virtual CMeanFunctionget_mean ()

virtual void set_mean (CMeanFunction *m)

virtual CLabelsget_labels ()

virtual void set_labels (CLabels *lab)

CLikelihoodModelget_model ()

virtual float64_t get_scale () const

virtual void set_scale (float64_t scale)

virtual bool supports_multiclass () const

virtual SGMatrix< float64_tget_multiclass_E ()

virtual CSGObjectshallow_copy () const

virtual CSGObjectdeep_copy () const

virtual bool is_generic (EPrimitiveType *generic) const

template<class T >
void set_generic ()

template<>
void set_generic ()

template<>
void set_generic ()

template<>
void set_generic ()

template<>
void set_generic ()

template<>
void set_generic ()

template<>
void set_generic ()

template<>
void set_generic ()

template<>
void set_generic ()

template<>
void set_generic ()

template<>
void set_generic ()

template<>
void set_generic ()

template<>
void set_generic ()

template<>
void set_generic ()

template<>
void set_generic ()

template<>
void set_generic ()

void unset_generic ()

virtual void print_serializable (const char *prefix="")

virtual bool save_serializable (CSerializableFile *file, const char *prefix="")

virtual bool load_serializable (CSerializableFile *file, const char *prefix="")

void set_global_io (SGIO *io)

SGIOget_global_io ()

void set_global_parallel (Parallel *parallel)

Parallelget_global_parallel ()

void set_global_version (Version *version)

Versionget_global_version ()

SGStringList< char > get_modelsel_names ()

void print_modsel_params ()

char * get_modsel_param_descr (const char *param_name)

index_t get_modsel_param_index (const char *param_name)

void build_gradient_parameter_dictionary (CMap< TParameter *, CSGObject * > *dict)

virtual void update_parameter_hash ()

virtual bool parameter_hash_changed ()

virtual bool equals (CSGObject *other, float64_t accuracy=0.0, bool tolerant=false)

virtual CSGObjectclone ()


Public 属性

SGIOio

Parallelparallel

Versionversion

Parameterm_parameters

Parameterm_model_selection_parameters

Parameterm_gradient_parameters

uint32_t m_hash


Protected 成员函数

virtual void update_chol ()

virtual void update_deriv ()

virtual float64_t get_derivative_related_cov (SGMatrix< float64_t > dK)

virtual void update_approx_cov ()

Eigen::MatrixXd solve_inverse (Eigen::MatrixXd A)

virtual void update_init ()

virtual void update_Sigma ()=0

virtual void update_InvK_Sigma ()=0

virtual void compute_gradient ()

virtual Eigen::LDLT
< Eigen::MatrixXd, 0x1 >
update_init_helper ()

virtual
CVariationalGaussianLikelihood
get_variational_likelihood () const

virtual void check_variational_likelihood (CLikelihoodModel *mod) const

virtual float64_t lbfgs_optimization ()

virtual SGVector< float64_tget_derivative_wrt_inference_method (const TParameter *param)

virtual SGVector< float64_tget_derivative_wrt_likelihood_model (const TParameter *param)

virtual SGVector< float64_tget_derivative_wrt_kernel (const TParameter *param)

virtual SGVector< float64_tget_derivative_wrt_mean (const TParameter *param)

virtual float64_t get_negative_log_marginal_likelihood_helper ()=0

virtual float64_t get_nlml_wrt_parameters ()

virtual void get_gradient_of_nlml_wrt_parameters (SGVector< float64_t > gradient)=0

virtual bool lbfgs_precompute ()=0

virtual void check_members () const

virtual void update_alpha ()=0

virtual void update_train_kernel ()

virtual void load_serializable_pre () throw (ShogunException)

virtual void load_serializable_post () throw (ShogunException)

virtual void save_serializable_pre () throw (ShogunException)

virtual void save_serializable_post () throw (ShogunException)


静态 Protected 成员函数

static void * get_derivative_helper (void *p)


Protected 属性

SGMatrix< float64_tm_InvK_Sigma

SGVector< float64_tm_mean_vec

float64_t m_log_det_Kernel

SGMatrix< float64_tm_Kernel_LsD

SGVector< index_tm_Kernel_P

float64_t m_min_coeff_kernel

float64_t m_noise_factor

float64_t m_exp_factor

index_t m_max_attempt

SGVector< float64_tm_mu

SGMatrix< float64_tm_Sigma

SGVector< float64_tm_s2

int m_m

int m_max_linesearch

int m_linesearch

int m_max_iterations

float64_t m_delta

int m_past

float64_t m_epsilon

float64_t m_min_step

float64_t m_max_step

float64_t m_ftol

float64_t m_wolfe

float64_t m_gtol

float64_t m_xtol

float64_t m_orthantwise_c

int m_orthantwise_start

int m_orthantwise_end

CKernelm_kernel

CMeanFunctionm_mean

CLikelihoodModelm_model

CFeaturesm_features

CLabelsm_labels

SGVector< float64_tm_alpha

SGMatrix< float64_tm_L

float64_t m_log_scale

SGMatrix< float64_tm_ktrtr

SGMatrix< float64_tm_E

bool m_gradient_update


构造及析构函数说明

default constructor

在文件 KLLowerTriangularInferenceMethod.cpp54 行定义.

CKLLowerTriangularInferenceMethod ( CKernel kernel,
CFeatures features,
CMeanFunction mean,
CLabels labels,
CLikelihoodModel model
)

constructor

参数
kernelcovariance function
featuresfeatures to use in inference
meanmean function
labelslabels of the features
modelLikelihood model to use

在文件 KLLowerTriangularInferenceMethod.cpp59 行定义.

在文件 KLLowerTriangularInferenceMethod.cpp87 行定义.

成员函数说明

void build_gradient_parameter_dictionary ( CMap< TParameter *, CSGObject * > *  dict)
inherited

Builds a dictionary of all parameters in SGObject as well of those of SGObjects that are parameters of this object. Dictionary maps parameters to the objects that own them.

参数
dictdictionary of parameters to be built.

在文件 SGObject.cpp597 行定义.

void check_members ( ) const
protectedvirtualinherited

check if members of object are valid for inference

CSparseInferenceBase, CExactInferenceMethod, CFITCInferenceMethod, CSparseVGInferenceMethod , 以及 CMultiLaplacianInferenceMethod 重载.

在文件 InferenceMethod.cpp309 行定义.

void check_variational_likelihood ( CLikelihoodModel mod) const
protectedvirtualinherited

check the provided likelihood model supports variational inference

参数
modthe provided likelihood model
返回
whether the provided likelihood model supports variational inference or not

在文件 KLInferenceMethod.cpp57 行定义.

CSGObject * clone ( )
virtualinherited

Creates a clone of the current object. This is done via recursively traversing all parameters, which corresponds to a deep copy. Calling equals on the cloned object always returns true although none of the memory of both objects overlaps.

返回
an identical copy of the given object, which is disjoint in memory. NULL if the clone fails. Note that the returned object is SG_REF'ed

在文件 SGObject.cpp714 行定义.

void compute_gradient ( )
protectedvirtualinherited

update gradients

重载 CInferenceMethod .

在文件 KLInferenceMethod.cpp156 行定义.

CSGObject * deep_copy ( ) const
virtualinherited

A deep copy. All the instance variables will also be copied.

在文件 SGObject.cpp198 行定义.

bool equals ( CSGObject other,
float64_t  accuracy = 0.0,
bool  tolerant = false
)
virtualinherited

Recursively compares the current SGObject to another one. Compares all registered numerical parameters, recursion upon complex (SGObject) parameters. Does not compare pointers!

May be overwritten but please do with care! Should not be necessary in most cases.

参数
otherobject to compare with
accuracyaccuracy to use for comparison (optional)
tolerantallows linient check on float equality (within accuracy)
返回
true if all parameters were equal, false if not

在文件 SGObject.cpp618 行定义.

SGMatrix< float64_t > get_cholesky ( )
virtualinherited

get Cholesky decomposition matrix

返回
Cholesky decomposition of matrix:

\[ L = cholesky(sW*K*sW+I) \]

where \(K\) is the prior covariance matrix, \(sW\) is the vector returned by get_diagonal_vector(), and \(I\) is the identity matrix.

Note that in some sub class L is not the Cholesky decomposition In this case, L will still be used to compute required matrix for prediction see CGaussianProcessMachine::get_posterior_variances()

在文件 KLInferenceMethod.cpp451 行定义.

void * get_derivative_helper ( void *  p)
staticprotectedinherited

pthread helper method to compute negative log marginal likelihood derivatives wrt hyperparameter

在文件 InferenceMethod.cpp255 行定义.

float64_t get_derivative_related_cov ( SGMatrix< float64_t dK)
protectedvirtual

compute matrices which are required to compute negative log marginal likelihood derivatives wrt hyperparameter in cov function Note that get_derivative_wrt_inference_method(const TParameter* param) and get_derivative_wrt_kernel(const TParameter* param) will call this function

参数
thegradient wrt hyperparameter related to cov

实现了 CKLInferenceMethod.

在文件 KLLowerTriangularInferenceMethod.cpp153 行定义.

SGVector< float64_t > get_derivative_wrt_inference_method ( const TParameter param)
protectedvirtualinherited

returns derivative of negative log marginal likelihood wrt parameter of CInferenceMethod class

参数
paramparameter of CInferenceMethod class
返回
derivative of negative log marginal likelihood

实现了 CInferenceMethod.

在文件 KLInferenceMethod.cpp411 行定义.

SGVector< float64_t > get_derivative_wrt_kernel ( const TParameter param)
protectedvirtualinherited

returns derivative of negative log marginal likelihood wrt kernel's parameter

参数
paramparameter of given kernel
返回
derivative of negative log marginal likelihood

实现了 CInferenceMethod.

在文件 KLInferenceMethod.cpp427 行定义.

SGVector< float64_t > get_derivative_wrt_likelihood_model ( const TParameter param)
protectedvirtualinherited

returns derivative of negative log marginal likelihood wrt parameter of likelihood model

参数
paramparameter of given likelihood model
返回
derivative of negative log marginal likelihood

实现了 CInferenceMethod.

在文件 KLInferenceMethod.cpp337 行定义.

SGVector< float64_t > get_derivative_wrt_mean ( const TParameter param)
protectedvirtualinherited

returns derivative of negative log marginal likelihood wrt mean function's parameter

参数
paramparameter of given mean function
返回
derivative of negative log marginal likelihood

实现了 CInferenceMethod.

在文件 KLInferenceMethod.cpp353 行定义.

SGVector< float64_t > get_diagonal_vector ( )
virtual

get diagonal vector

返回
diagonal of matrix used to calculate posterior covariance matrix:

Note that this vector is not avaliable for the KL method

The diagonal vector W is NOT used in this KL method Therefore, return empty vector

在文件 KLLowerTriangularInferenceMethod.cpp91 行定义.

virtual CFeatures* get_features ( )
virtualinherited

get features

返回
features

在文件 InferenceMethod.h266 行定义.

SGIO * get_global_io ( )
inherited

get the io object

返回
io object

在文件 SGObject.cpp235 行定义.

Parallel * get_global_parallel ( )
inherited

get the parallel object

返回
parallel object

在文件 SGObject.cpp277 行定义.

Version * get_global_version ( )
inherited

get the version object

返回
version object

在文件 SGObject.cpp290 行定义.

virtual CMap<TParameter*, SGVector<float64_t> >* get_gradient ( CMap< TParameter *, CSGObject * > *  parameters)
virtualinherited

get the gradient

参数
parametersparameter's dictionary
返回
map of gradient. Keys are names of parameters, values are values of derivative with respect to that parameter.

实现了 CDifferentiableFunction.

在文件 InferenceMethod.h245 行定义.

virtual void get_gradient_of_nlml_wrt_parameters ( SGVector< float64_t gradient)
protectedpure virtualinherited

compute the gradient wrt variational parameters given the current variational parameters (mu and s2)

返回
gradient of negative log marginal likelihood

CKLCovarianceInferenceMethod, CKLDualInferenceMethod, CKLApproxDiagonalInferenceMethod , 以及 CKLCholeskyInferenceMethod 内被实现.

virtual EInferenceType get_inference_type ( ) const
virtualinherited

return what type of inference we are

重载 CInferenceMethod .

CKLApproxDiagonalInferenceMethod, CKLCholeskyInferenceMethod, CKLCovarianceInferenceMethod , 以及 CKLDualInferenceMethod 重载.

在文件 KLInferenceMethod.h99 行定义.

virtual CKernel* get_kernel ( )
virtualinherited

get kernel

返回
kernel

在文件 InferenceMethod.h283 行定义.

virtual CLabels* get_labels ( )
virtualinherited

get labels

返回
labels

在文件 InferenceMethod.h317 行定义.

float64_t get_marginal_likelihood_estimate ( int32_t  num_importance_samples = 1,
float64_t  ridge_size = 1e-15
)
inherited

Computes an unbiased estimate of the marginal-likelihood (in log-domain),

\[ p(y|X,\theta), \]

where \(y\) are the labels, \(X\) are the features (omitted from in the following expressions), and \(\theta\) represent hyperparameters.

This is done via a Gaussian approximation to the posterior \(q(f|y, \theta)\approx p(f|y, \theta)\), which is computed by the underlying CInferenceMethod instance (if implemented, otherwise error), and then using an importance sample estimator

\[ p(y|\theta)=\int p(y|f)p(f|\theta)df =\int p(y|f)\frac{p(f|\theta)}{q(f|y, \theta)}q(f|y, \theta)df \approx\frac{1}{n}\sum_{i=1}^n p(y|f^{(i)})\frac{p(f^{(i)}|\theta)} {q(f^{(i)}|y, \theta)}, \]

where \( f^{(i)} \) are samples from the posterior approximation \( q(f|y, \theta) \). The resulting estimator has a low variance if \( q(f|y, \theta) \) is a good approximation. It has large variance otherwise (while still being consistent). Storing all number of log-domain ensures numerical stability.

参数
num_importance_samplesthe number of importance samples \(n\) from \( q(f|y, \theta) \).
ridge_sizescalar that is added to the diagonal of the involved Gaussian distribution's covariance of GP prior and posterior approximation to stabilise things. Increase if covariance matrix is not numerically positive semi-definite.
返回
unbiased estimate of the marginal likelihood function \( p(y|\theta),\) in log-domain.

在文件 InferenceMethod.cpp126 行定义.

virtual CMeanFunction* get_mean ( )
virtualinherited

get mean

返回
mean

在文件 InferenceMethod.h300 行定义.

CLikelihoodModel* get_model ( )
inherited

get likelihood model

返回
likelihood

在文件 InferenceMethod.h334 行定义.

SGStringList< char > get_modelsel_names ( )
inherited
返回
vector of names of all parameters which are registered for model selection

在文件 SGObject.cpp498 行定义.

char * get_modsel_param_descr ( const char *  param_name)
inherited

Returns description of a given parameter string, if it exists. SG_ERROR otherwise

参数
param_namename of the parameter
返回
description of the parameter

在文件 SGObject.cpp522 行定义.

index_t get_modsel_param_index ( const char *  param_name)
inherited

Returns index of model selection parameter with provided index

参数
param_namename of model selection parameter
返回
index of model selection parameter with provided name, -1 if there is no such

在文件 SGObject.cpp535 行定义.

SGMatrix< float64_t > get_multiclass_E ( )
virtualinherited

get the E matrix used for multi classification

返回
the matrix for multi classification

在文件 InferenceMethod.cpp72 行定义.

virtual const char* get_name ( ) const
virtual

returns the name of the inference method

返回
name KLLowerTriangularInferenceMethod

重载 CKLInferenceMethod .

CKLApproxDiagonalInferenceMethod , 以及 CKLCholeskyInferenceMethod 重载.

在文件 KLLowerTriangularInferenceMethod.h92 行定义.

float64_t get_negative_log_marginal_likelihood ( )
virtualinherited

get negative log marginal likelihood

返回
the negative log of the marginal likelihood function:

\[ -log(p(y|X, \theta)) \]

where \(y\) are the labels, \(X\) are the features, and \(\theta\) represent hyperparameters.

实现了 CInferenceMethod.

在文件 KLInferenceMethod.cpp329 行定义.

CMap< TParameter *, SGVector< float64_t > > * get_negative_log_marginal_likelihood_derivatives ( CMap< TParameter *, CSGObject * > *  parameters)
virtualinherited

get log marginal likelihood gradient

返回
vector of the marginal likelihood function gradient with respect to hyperparameters (under the current approximation to the posterior \(q(f|y)\approx p(f|y)\):

\[ -\frac{\partial log(p(y|X, \theta))}{\partial \theta} \]

where \(y\) are the labels, \(X\) are the features, and \(\theta\) represent hyperparameters.

在文件 InferenceMethod.cpp185 行定义.

virtual float64_t get_negative_log_marginal_likelihood_helper ( )
protectedpure virtualinherited

the helper function to compute the negative log marginal likelihood

返回
negative log marginal likelihood

CKLDualInferenceMethod, CKLCovarianceInferenceMethod, CKLApproxDiagonalInferenceMethod , 以及 CKLCholeskyInferenceMethod 内被实现.

float64_t get_nlml_wrt_parameters ( )
protectedvirtualinherited

compute the negative log marginal likelihood given the current variational parameters (mu and s2)

返回
negative log marginal likelihood

在文件 KLInferenceMethod.cpp286 行定义.

SGMatrix< float64_t > get_posterior_covariance ( )
virtualinherited

returns covariance matrix \(\Sigma=(K^{-1}+W)^{-1}\) of the Gaussian distribution \(\mathcal{N}(\mu,\Sigma)\), which is an approximation to the posterior:

\[ p(f|y) \approx q(f|y) = \mathcal{N}(f|\mu,\Sigma) \]

Covariance matrix is evaluated using matrix inversion lemma:

\[ (K^{-1}+W)^{-1} = K - KW^{\frac{1}{2}}B^{-1}W^{\frac{1}{2}}K \]

where \(B=(W^{frac{1}{2}}*K*W^{frac{1}{2}}+I)\).

返回
covariance matrix

实现了 CInferenceMethod.

在文件 KLInferenceMethod.cpp251 行定义.

SGVector< float64_t > get_posterior_mean ( )
virtualinherited

returns mean vector \(\mu\) of the Gaussian distribution \(\mathcal{N}(\mu,\Sigma)\), which is an approximation to the posterior:

\[ p(f|y) \approx q(f|y) = \mathcal{N}(f|\mu,\Sigma) \]

返回
mean vector

实现了 CInferenceMethod.

在文件 KLInferenceMethod.cpp244 行定义.

float64_t get_scale ( ) const
virtualinherited

get kernel scale

返回
kernel scale

在文件 InferenceMethod.cpp61 行定义.

virtual SGVector<float64_t> get_value ( )
virtualinherited

get the function value

返回
vector that represents the function value

实现了 CDifferentiableFunction.

在文件 InferenceMethod.h255 行定义.

CVariationalGaussianLikelihood * get_variational_likelihood ( ) const
protectedvirtualinherited

this method is used to dynamic-cast the likelihood model, m_model, to variational likelihood model.

在文件 KLInferenceMethod.cpp279 行定义.

bool is_generic ( EPrimitiveType *  generic) const
virtualinherited

If the SGSerializable is a class template then TRUE will be returned and GENERIC is set to the type of the generic.

参数
genericset to the type of the generic if returning TRUE
返回
TRUE if a class template.

在文件 SGObject.cpp296 行定义.

float64_t lbfgs_optimization ( )
protectedvirtualinherited

Using L-BFGS to estimate posterior parameters

CKLDualInferenceMethod 重载.

在文件 KLInferenceMethod.cpp382 行定义.

virtual bool lbfgs_precompute ( )
protectedpure virtualinherited

pre-compute the information for lbfgs optimization. This function needs to be called before calling get_negative_log_marginal_likelihood_wrt_parameters() and/or get_gradient_of_nlml_wrt_parameters(SGVector<float64_t> gradient)

返回
true if precomputed parameters are valid

CKLDualInferenceMethod, CKLCovarianceInferenceMethod, CKLApproxDiagonalInferenceMethod , 以及 CKLCholeskyInferenceMethod 内被实现.

bool load_serializable ( CSerializableFile file,
const char *  prefix = ""
)
virtualinherited

Load this object from file. If it will fail (returning FALSE) then this object will contain inconsistent data and should not be used!

参数
filewhere to load from
prefixprefix for members
返回
TRUE if done, otherwise FALSE

在文件 SGObject.cpp369 行定义.

void load_serializable_post ( )
throw (ShogunException
)
protectedvirtualinherited

Can (optionally) be overridden to post-initialize some member variables which are not PARAMETER::ADD'ed. Make sure that at first the overridden method BASE_CLASS::LOAD_SERIALIZABLE_POST is called.

异常
ShogunExceptionwill be thrown if an error occurs.

CKernel, CWeightedDegreePositionStringKernel, CList, CAlphabet, CLinearHMM, CGaussianKernel, CInverseMultiQuadricKernel, CCircularKernel , 以及 CExponentialKernel 重载.

在文件 SGObject.cpp426 行定义.

void load_serializable_pre ( )
throw (ShogunException
)
protectedvirtualinherited

Can (optionally) be overridden to pre-initialize some member variables which are not PARAMETER::ADD'ed. Make sure that at first the overridden method BASE_CLASS::LOAD_SERIALIZABLE_PRE is called.

异常
ShogunExceptionwill be thrown if an error occurs.

CDynamicArray< T >, CDynamicArray< float64_t >, CDynamicArray< float32_t >, CDynamicArray< int32_t >, CDynamicArray< char >, CDynamicArray< bool > , 以及 CDynamicObjectArray 重载.

在文件 SGObject.cpp421 行定义.

bool parameter_hash_changed ( )
virtualinherited
返回
whether parameter combination has changed since last update

在文件 SGObject.cpp262 行定义.

void print_modsel_params ( )
inherited

prints all parameter registered for model selection and their type

在文件 SGObject.cpp474 行定义.

void print_serializable ( const char *  prefix = "")
virtualinherited

prints registered parameters out

参数
prefixprefix for members

在文件 SGObject.cpp308 行定义.

bool save_serializable ( CSerializableFile file,
const char *  prefix = ""
)
virtualinherited

Save this object to file.

参数
filewhere to save the object; will be closed during returning if PREFIX is an empty string.
prefixprefix for members
返回
TRUE if done, otherwise FALSE

在文件 SGObject.cpp314 行定义.

void save_serializable_post ( )
throw (ShogunException
)
protectedvirtualinherited

Can (optionally) be overridden to post-initialize some member variables which are not PARAMETER::ADD'ed. Make sure that at first the overridden method BASE_CLASS::SAVE_SERIALIZABLE_POST is called.

异常
ShogunExceptionwill be thrown if an error occurs.

CKernel 重载.

在文件 SGObject.cpp436 行定义.

void save_serializable_pre ( )
throw (ShogunException
)
protectedvirtualinherited

Can (optionally) be overridden to pre-initialize some member variables which are not PARAMETER::ADD'ed. Make sure that at first the overridden method BASE_CLASS::SAVE_SERIALIZABLE_PRE is called.

异常
ShogunExceptionwill be thrown if an error occurs.

CKernel, CDynamicArray< T >, CDynamicArray< float64_t >, CDynamicArray< float32_t >, CDynamicArray< int32_t >, CDynamicArray< char >, CDynamicArray< bool > , 以及 CDynamicObjectArray 重载.

在文件 SGObject.cpp431 行定义.

void set_exp_factor ( float64_t  exp_factor)
virtualinherited

set exp factor to exponentially increase noise factor

参数
exp_factorshould be greater than 1.0 default value is 2

在文件 KLInferenceMethod.cpp201 行定义.

virtual void set_features ( CFeatures feat)
virtualinherited

set features

参数
featfeatures to set

在文件 InferenceMethod.h272 行定义.

void set_generic ( )
inherited

在文件 SGObject.cpp41 行定义.

void set_generic ( )
inherited

在文件 SGObject.cpp46 行定义.

void set_generic ( )
inherited

在文件 SGObject.cpp51 行定义.

void set_generic ( )
inherited

在文件 SGObject.cpp56 行定义.

void set_generic ( )
inherited

在文件 SGObject.cpp61 行定义.

void set_generic ( )
inherited

在文件 SGObject.cpp66 行定义.

void set_generic ( )
inherited

在文件 SGObject.cpp71 行定义.

void set_generic ( )
inherited

在文件 SGObject.cpp76 行定义.

void set_generic ( )
inherited

在文件 SGObject.cpp81 行定义.

void set_generic ( )
inherited

在文件 SGObject.cpp86 行定义.

void set_generic ( )
inherited

在文件 SGObject.cpp91 行定义.

void set_generic ( )
inherited

在文件 SGObject.cpp96 行定义.

void set_generic ( )
inherited

在文件 SGObject.cpp101 行定义.

void set_generic ( )
inherited

在文件 SGObject.cpp106 行定义.

void set_generic ( )
inherited

在文件 SGObject.cpp111 行定义.

void set_generic ( )
inherited

set generic type to T

void set_global_io ( SGIO io)
inherited

set the io object

参数
ioio object to use

在文件 SGObject.cpp228 行定义.

void set_global_parallel ( Parallel parallel)
inherited

set the parallel object

参数
parallelparallel object to use

在文件 SGObject.cpp241 行定义.

void set_global_version ( Version version)
inherited

set the version object

参数
versionversion object to use

在文件 SGObject.cpp283 行定义.

virtual void set_kernel ( CKernel kern)
virtualinherited

set kernel

参数
kernkernel to set

CSingleSparseInferenceBase 重载.

在文件 InferenceMethod.h289 行定义.

virtual void set_labels ( CLabels lab)
virtualinherited

set labels

参数
lablabel to set

在文件 InferenceMethod.h323 行定义.

void set_lbfgs_parameters ( int  m = 100,
int  max_linesearch = 1000,
int  linesearch = LBFGS_LINESEARCH_BACKTRACKING_STRONG_WOLFE,
int  max_iterations = 1000,
float64_t  delta = 0.0,
int  past = 0,
float64_t  epsilon = 1e-5,
float64_t  min_step = 1e-20,
float64_t  max_step = 1e+20,
float64_t  ftol = 1e-4,
float64_t  wolfe = 0.9,
float64_t  gtol = 0.9,
float64_t  xtol = 1e-16,
float64_t  orthantwise_c = 0.0,
int  orthantwise_start = 0,
int  orthantwise_end = 1
)
virtualinherited

在文件 KLInferenceMethod.cpp293 行定义.

void set_max_attempt ( index_t  max_attempt)
virtualinherited

set max attempt to ensure Kernel matrix to be positive definite

参数
max_attemptshould be non-negative. 0 means infinity attempts default value is 0

在文件 KLInferenceMethod.cpp195 行定义.

virtual void set_mean ( CMeanFunction m)
virtualinherited

set mean

参数
mmean function to set

在文件 InferenceMethod.h306 行定义.

void set_min_coeff_kernel ( float64_t  min_coeff_kernel)
virtualinherited

set minimum coeefficient of kernel matrix used in LDLT factorization

参数
min_coeff_kernelshould be non-negative default value is 1e-5

在文件 KLInferenceMethod.cpp189 行定义.

void set_model ( CLikelihoodModel mod)
virtualinherited

set variational likelihood model

参数
modmodel to set

重载 CInferenceMethod .

CKLDualInferenceMethod 重载.

在文件 KLInferenceMethod.cpp67 行定义.

void set_noise_factor ( float64_t  noise_factor)
virtualinherited

set noise factor to ensure Kernel matrix to be positive definite by adding non-negative noise to diagonal elements of Kernel matrix

参数
noise_factorshould be non-negative default value is 1e-10

在文件 KLInferenceMethod.cpp183 行定义.

void set_scale ( float64_t  scale)
virtualinherited

set kernel scale

参数
scalescale to be set

在文件 InferenceMethod.cpp66 行定义.

CSGObject * shallow_copy ( ) const
virtualinherited

A shallow copy. All the SGObject instance variables will be simply assigned and SG_REF-ed.

CGaussianKernel 重载.

在文件 SGObject.cpp192 行定义.

MatrixXd solve_inverse ( Eigen::MatrixXd  A)
protected

compute the inv(corrected_Kernel*sq(m_scale))*A

参数
Ainput matrix
返回
inv(corrected_Kernel*sq(m_scale))*A:

在文件 KLLowerTriangularInferenceMethod.cpp126 行定义.

virtual bool supports_binary ( ) const
virtualinherited
返回
whether combination of KL approximation inference method and given likelihood function supports binary classification

重载 CInferenceMethod .

在文件 KLInferenceMethod.h167 行定义.

virtual bool supports_multiclass ( ) const
virtualinherited

whether combination of inference method and given likelihood function supports multiclass classification

返回
false

在文件 InferenceMethod.h378 行定义.

virtual bool supports_regression ( ) const
virtualinherited
返回
whether combination of KL approximation inference method and given likelihood function supports regression

重载 CInferenceMethod .

在文件 KLInferenceMethod.h157 行定义.

void unset_generic ( )
inherited

unset generic type

this has to be called in classes specializing a template class

在文件 SGObject.cpp303 行定义.

void update ( )
virtualinherited

update all matrices except gradients

重载 CInferenceMethod .

在文件 KLInferenceMethod.cpp169 行定义.

virtual void update_alpha ( )
protectedpure virtualinherited
void update_approx_cov ( )
protectedvirtual

update covariance matrix of the approximation to the posterior

update_Sigma() does the similar job Therefore, this function body is empty

实现了 CKLInferenceMethod.

在文件 KLLowerTriangularInferenceMethod.cpp167 行定义.

void update_chol ( )
protectedvirtual

update cholesky matrix

实现了 CInferenceMethod.

在文件 KLLowerTriangularInferenceMethod.cpp174 行定义.

void update_deriv ( )
protectedvirtual

update matrices which are required to compute negative log marginal likelihood derivatives wrt hyperparameter

get_derivative_related_cov() does the similar job Therefore, this function body is empty

实现了 CInferenceMethod.

在文件 KLLowerTriangularInferenceMethod.cpp99 行定义.

void update_init ( )
protectedvirtual

correct the kernel matrix and factorizated the corrected Kernel matrix for update

重载 CKLInferenceMethod .

在文件 KLLowerTriangularInferenceMethod.cpp106 行定义.

Eigen::LDLT< Eigen::MatrixXd > update_init_helper ( )
protectedvirtualinherited

a helper function used to correct the kernel matrix using LDLT factorization

返回
the LDLT factorization of the corrected kernel matrix

在文件 KLInferenceMethod.cpp212 行定义.

virtual void update_InvK_Sigma ( )
protectedpure virtual

compute inv(corrected_Kernel)*Sigma matrix

CKLApproxDiagonalInferenceMethod , 以及 CKLCholeskyInferenceMethod 内被实现.

void update_parameter_hash ( )
virtualinherited

Updates the hash of current parameter combination

在文件 SGObject.cpp248 行定义.

virtual void update_Sigma ( )
protectedpure virtual

compute posterior Sigma matrix

CKLApproxDiagonalInferenceMethod , 以及 CKLCholeskyInferenceMethod 内被实现.

void update_train_kernel ( )
protectedvirtualinherited

update train kernel matrix

CSparseInferenceBase 重载.

在文件 InferenceMethod.cpp324 行定义.

类成员变量说明

SGIO* io
inherited

io

在文件 SGObject.h369 行定义.

SGVector<float64_t> m_alpha
protectedinherited

alpha vector used in process mean calculation

在文件 InferenceMethod.h475 行定义.

float64_t m_delta
protectedinherited

在文件 KLInferenceMethod.h440 行定义.

SGMatrix<float64_t> m_E
protectedinherited

the matrix used for multi classification

在文件 InferenceMethod.h487 行定义.

float64_t m_epsilon
protectedinherited

在文件 KLInferenceMethod.h446 行定义.

float64_t m_exp_factor
protectedinherited

The factor used to exponentially increase noise_factor

在文件 KLInferenceMethod.h297 行定义.

CFeatures* m_features
protectedinherited

features to use

在文件 InferenceMethod.h469 行定义.

float64_t m_ftol
protectedinherited

在文件 KLInferenceMethod.h455 行定义.

Parameter* m_gradient_parameters
inherited

parameters wrt which we can compute gradients

在文件 SGObject.h384 行定义.

bool m_gradient_update
protectedinherited

Whether gradients are updated

在文件 InferenceMethod.h490 行定义.

float64_t m_gtol
protectedinherited

在文件 KLInferenceMethod.h461 行定义.

uint32_t m_hash
inherited

Hash of parameter values

在文件 SGObject.h387 行定义.

SGMatrix<float64_t> m_InvK_Sigma
protected

The K^{-1}Sigma matrix

在文件 KLLowerTriangularInferenceMethod.h128 行定义.

CKernel* m_kernel
protectedinherited

covariance function

在文件 InferenceMethod.h460 行定义.

SGMatrix<float64_t> m_Kernel_LsD
protected

The L*sqrt(D) matrix, where L and D are defined in LDLT factorization on Kernel*sq(m_scale)

在文件 KLLowerTriangularInferenceMethod.h137 行定义.

SGVector<index_t> m_Kernel_P
protected

The permutation sequence of P, where P are defined in LDLT factorization on Kernel*sq(m_scale)

在文件 KLLowerTriangularInferenceMethod.h140 行定义.

SGMatrix<float64_t> m_ktrtr
protectedinherited

kernel matrix from features (non-scalled by inference scalling)

在文件 InferenceMethod.h484 行定义.

SGMatrix<float64_t> m_L
protectedinherited

upper triangular factor of Cholesky decomposition

在文件 InferenceMethod.h478 行定义.

CLabels* m_labels
protectedinherited

labels of features

在文件 InferenceMethod.h472 行定义.

int m_linesearch
protectedinherited

在文件 KLInferenceMethod.h434 行定义.

float64_t m_log_det_Kernel
protected

The Log-determinant of Kernel

在文件 KLLowerTriangularInferenceMethod.h134 行定义.

float64_t m_log_scale
protectedinherited

kernel scale

在文件 InferenceMethod.h481 行定义.

int m_m
protectedinherited

在文件 KLInferenceMethod.h428 行定义.

index_t m_max_attempt
protectedinherited

Max number of attempt to correct kernel matrix to be positive definite

在文件 KLInferenceMethod.h300 行定义.

int m_max_iterations
protectedinherited

在文件 KLInferenceMethod.h437 行定义.

int m_max_linesearch
protectedinherited

在文件 KLInferenceMethod.h431 行定义.

float64_t m_max_step
protectedinherited

在文件 KLInferenceMethod.h452 行定义.

CMeanFunction* m_mean
protectedinherited

mean function

在文件 InferenceMethod.h463 行定义.

SGVector<float64_t> m_mean_vec
protected

The mean vector generated from mean function

在文件 KLLowerTriangularInferenceMethod.h131 行定义.

float64_t m_min_coeff_kernel
protectedinherited

The minimum coeefficient of kernel matrix in LDLT factorization used to check whether the kernel matrix is positive definite or not

在文件 KLInferenceMethod.h291 行定义.

float64_t m_min_step
protectedinherited

在文件 KLInferenceMethod.h449 行定义.

CLikelihoodModel* m_model
protectedinherited

likelihood function to use

在文件 InferenceMethod.h466 行定义.

Parameter* m_model_selection_parameters
inherited

model selection parameters

在文件 SGObject.h381 行定义.

SGVector<float64_t> m_mu
protectedinherited

mean vector of the approximation to the posterior Note that m_mu is also a variational parameter

在文件 KLInferenceMethod.h417 行定义.

float64_t m_noise_factor
protectedinherited

The factor used to ensure kernel matrix to be positive definite

在文件 KLInferenceMethod.h294 行定义.

float64_t m_orthantwise_c
protectedinherited

在文件 KLInferenceMethod.h467 行定义.

int m_orthantwise_end
protectedinherited

在文件 KLInferenceMethod.h473 行定义.

int m_orthantwise_start
protectedinherited

在文件 KLInferenceMethod.h470 行定义.

Parameter* m_parameters
inherited

parameters

在文件 SGObject.h378 行定义.

int m_past
protectedinherited

在文件 KLInferenceMethod.h443 行定义.

SGVector<float64_t> m_s2
protectedinherited

variational parameter sigma2 Note that sigma2 = diag(m_Sigma)

在文件 KLInferenceMethod.h425 行定义.

SGMatrix<float64_t> m_Sigma
protectedinherited

covariance matrix of the approximation to the posterior

在文件 KLInferenceMethod.h420 行定义.

float64_t m_wolfe
protectedinherited

在文件 KLInferenceMethod.h458 行定义.

float64_t m_xtol
protectedinherited

在文件 KLInferenceMethod.h464 行定义.

Parallel* parallel
inherited

parallel

在文件 SGObject.h372 行定义.

Version* version
inherited

version

在文件 SGObject.h375 行定义.


该类的文档由以下文件生成:

SHOGUN 机器学习工具包 - 项目文档
